• Mastering Investment Casting: Precision Machining

    for Exceptional Quality Components

    1. Innovative Casting Techniques

    2. Customized Solutions

    3. Uncompromising Precision & Accuracy





    banner text 1

20+ Years focus on Precision Castings

Title Border

Vast is the leading investment casting manufacturer in China. Vast specialized in precision investment casting with various surface treatments since 2003.

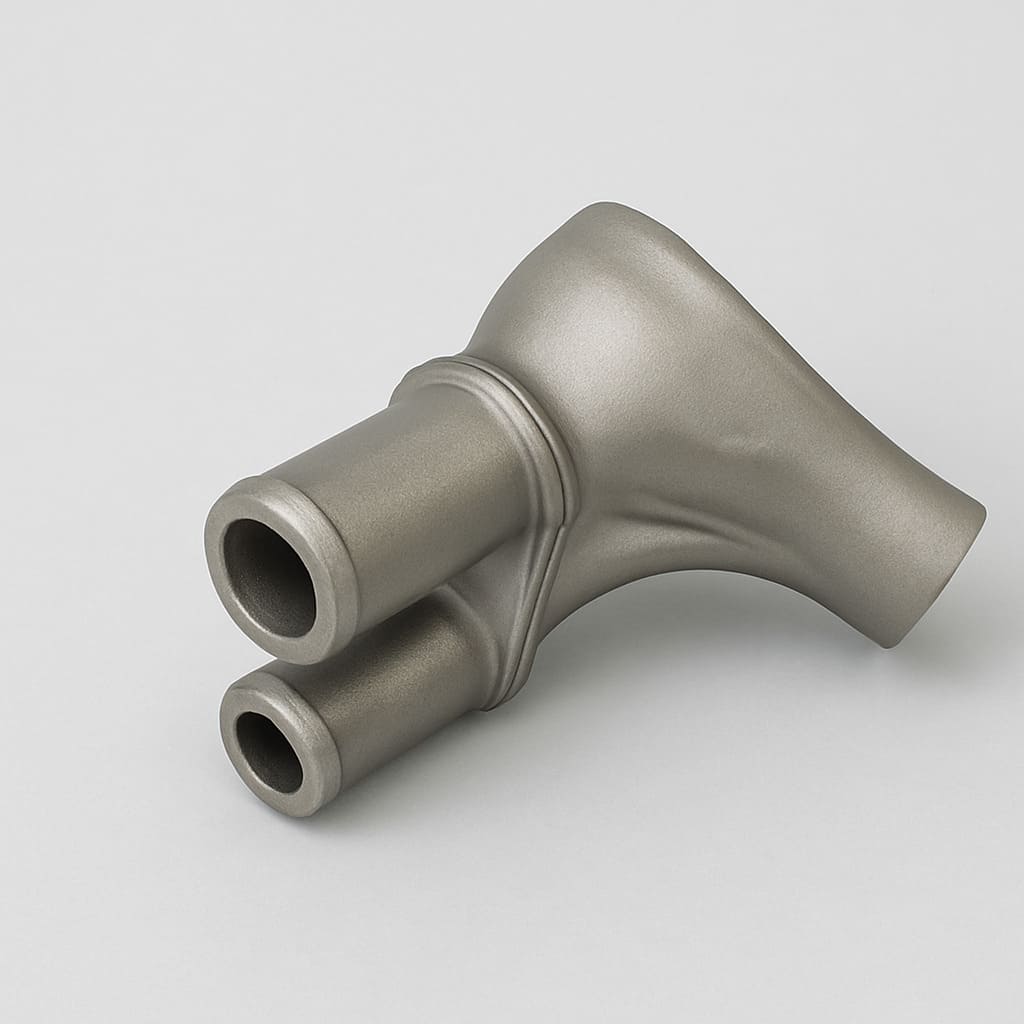

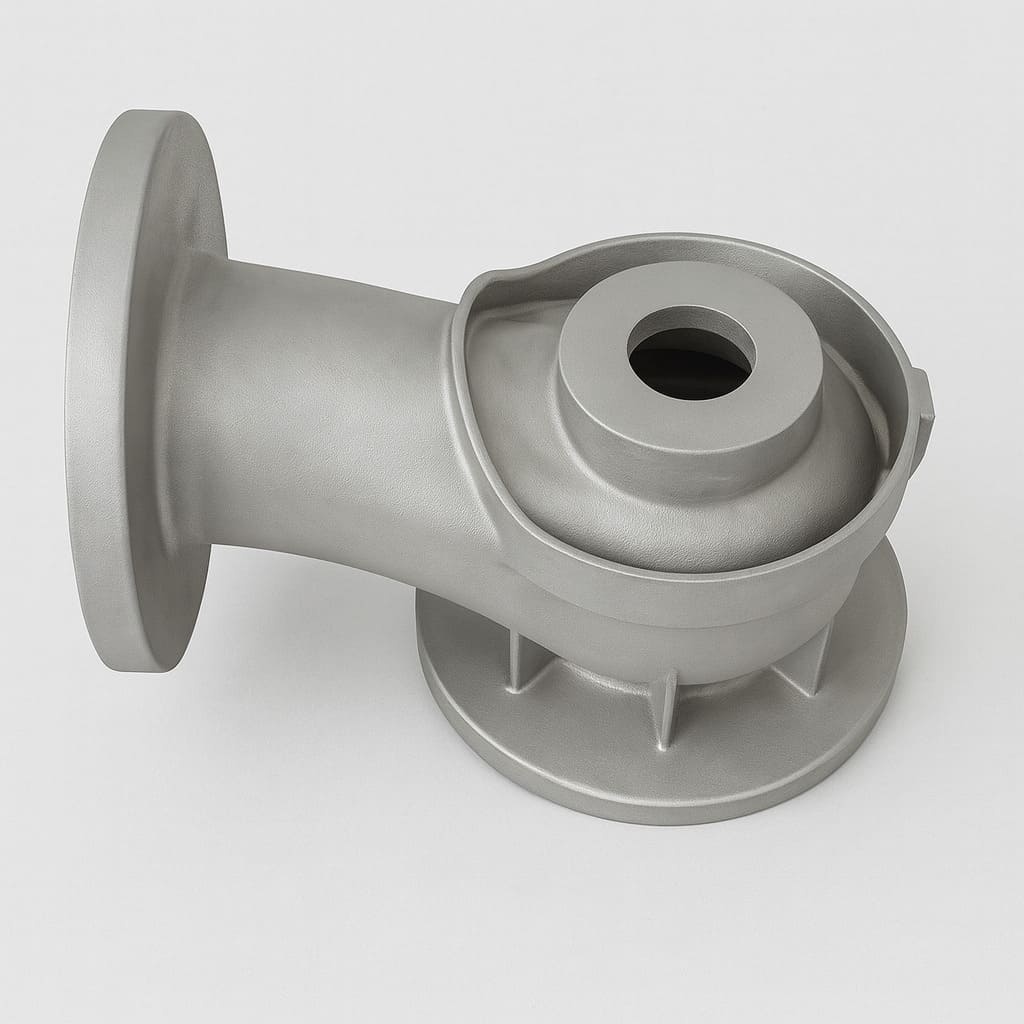

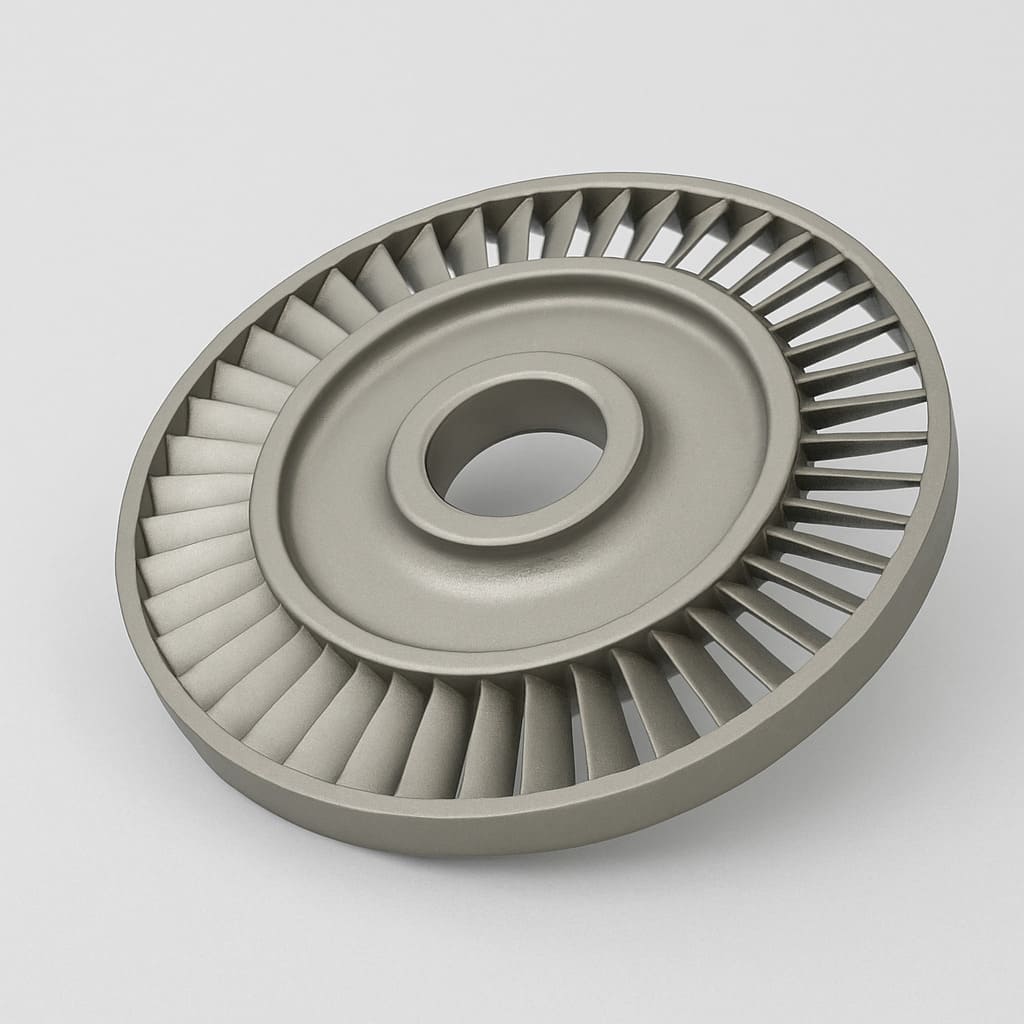

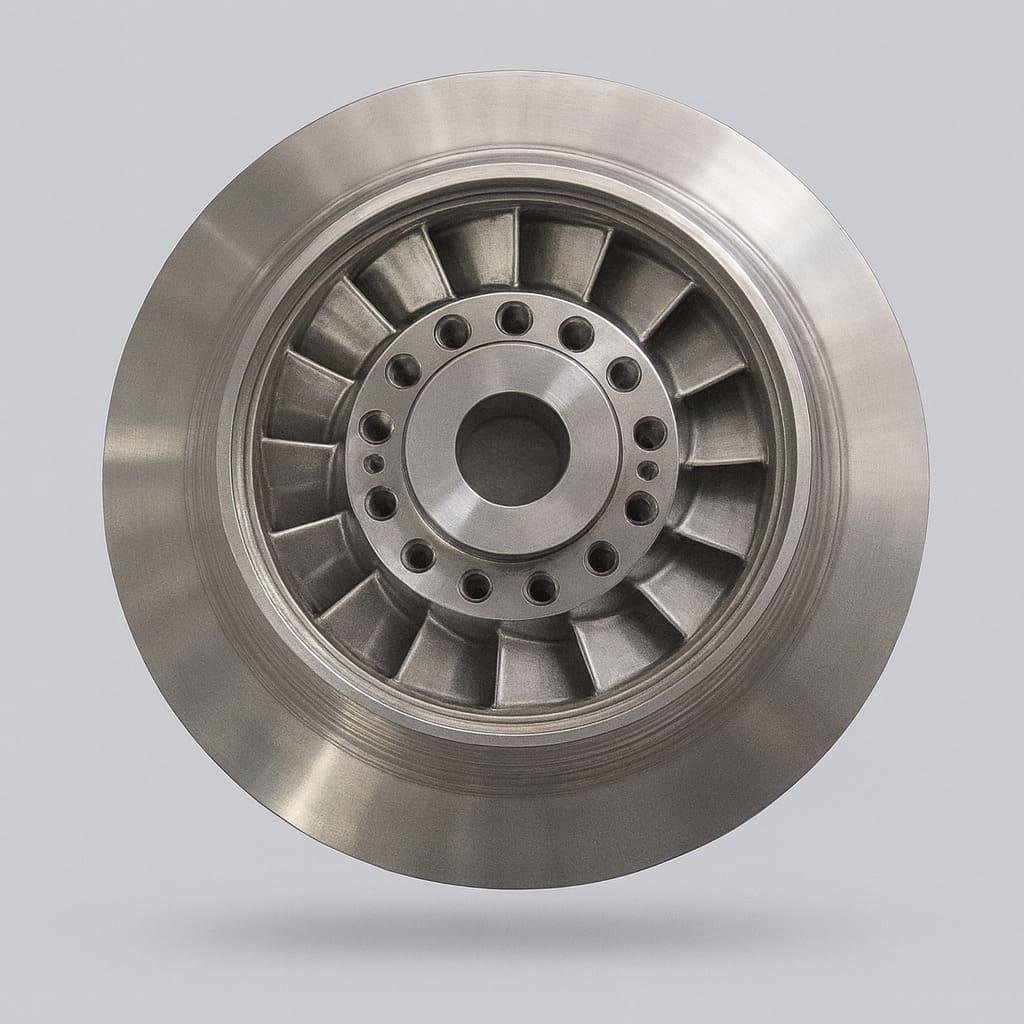

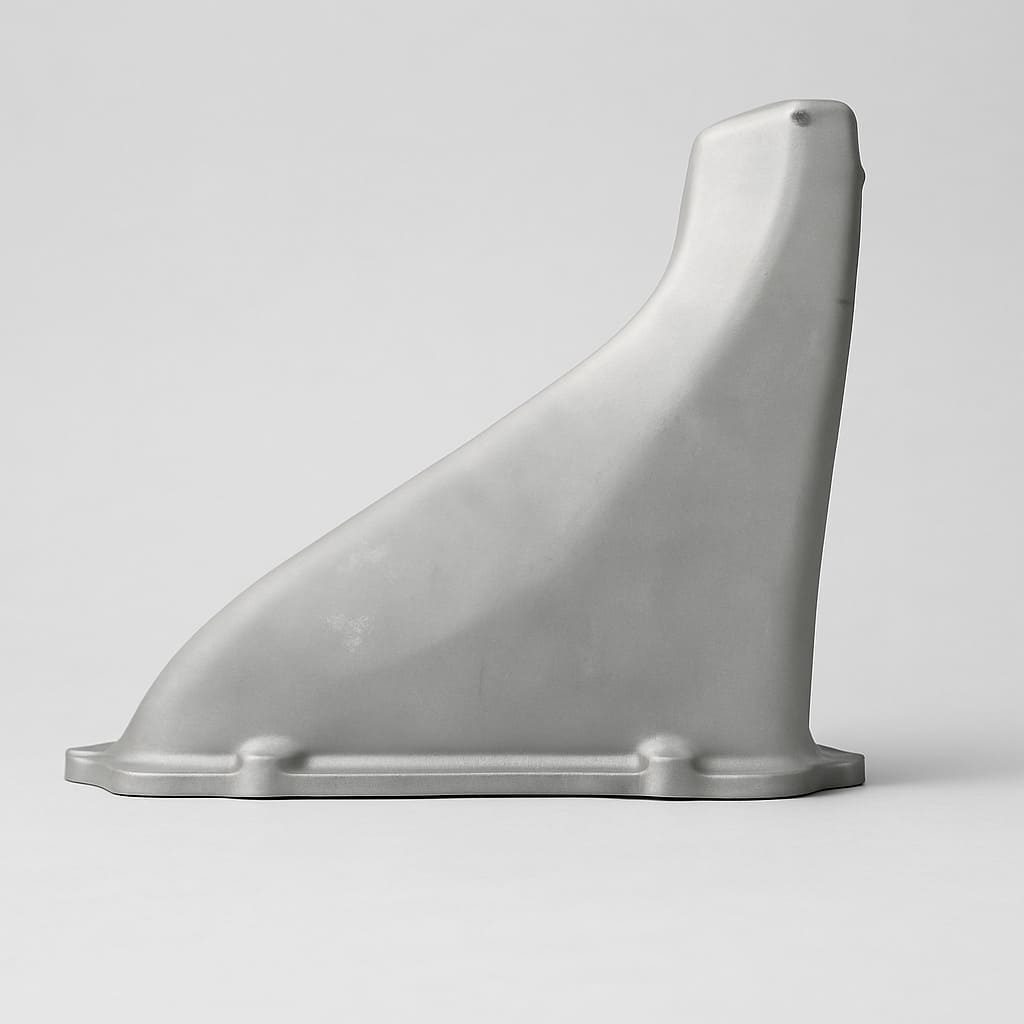

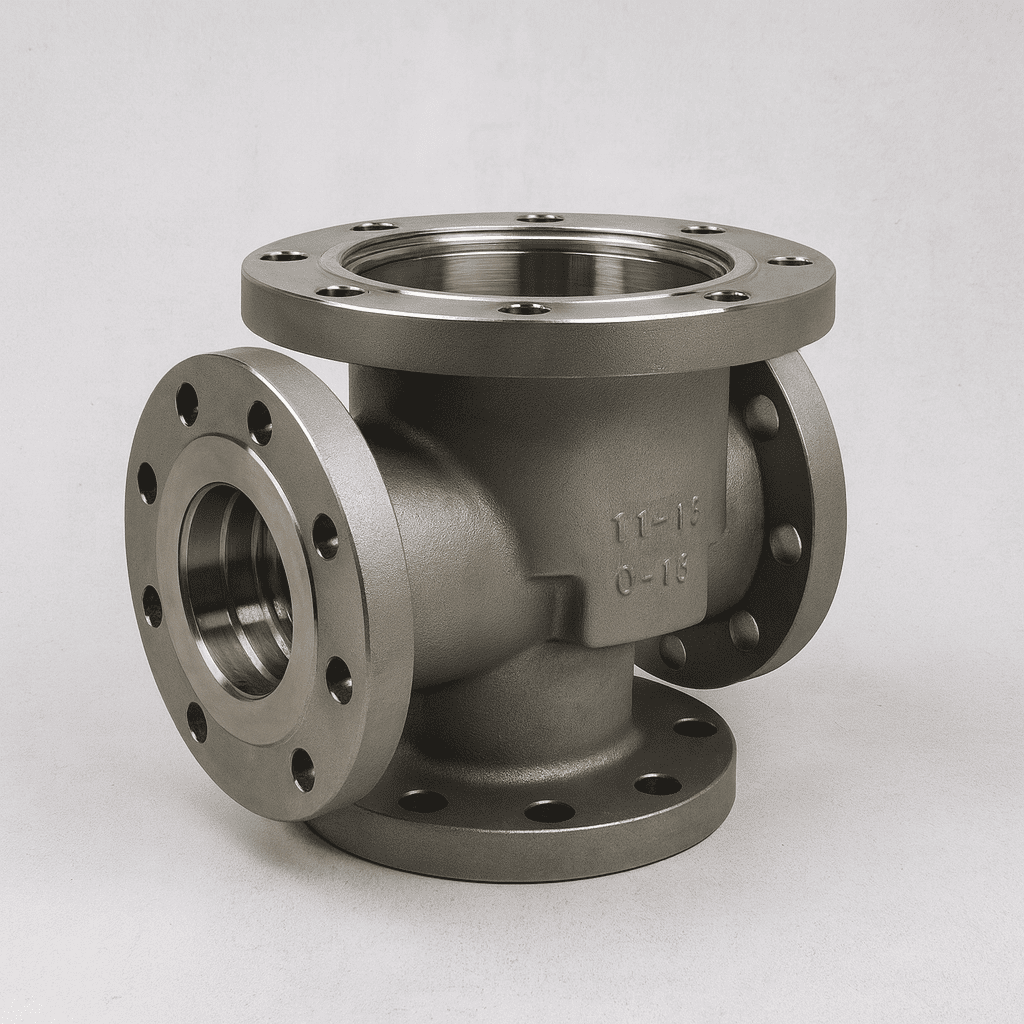

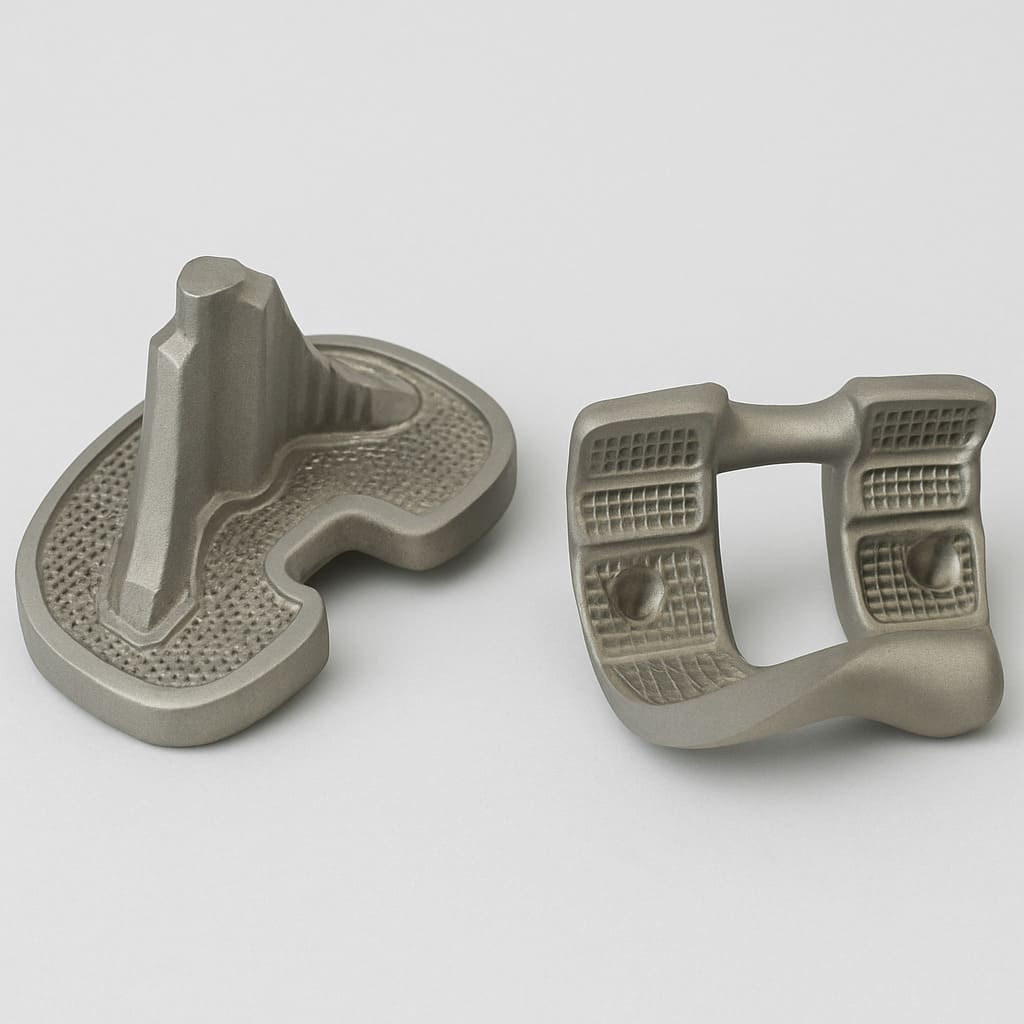

Vast supplies various precision casting parts, such as the medical industry, marine hardware, machined parts, mechanical products, pumps & valves, automotive parts, food & meat processing machinery, and so on.

We development high-grade components via stainless steel casting, carbon steel casting,alloy steel casting. Send us your CAD or 3D drawing to get the one-stop tailor-made service.

We handle large and small orders so you need have no constraint if your requirement is on the lower side. We ensure that equal quality standards are followed for orders of all sizes and our team takes care of the quality of each fixture individually, irrespective of whether you order one or a thousand!

Send Drawing Now Send Drawing Now

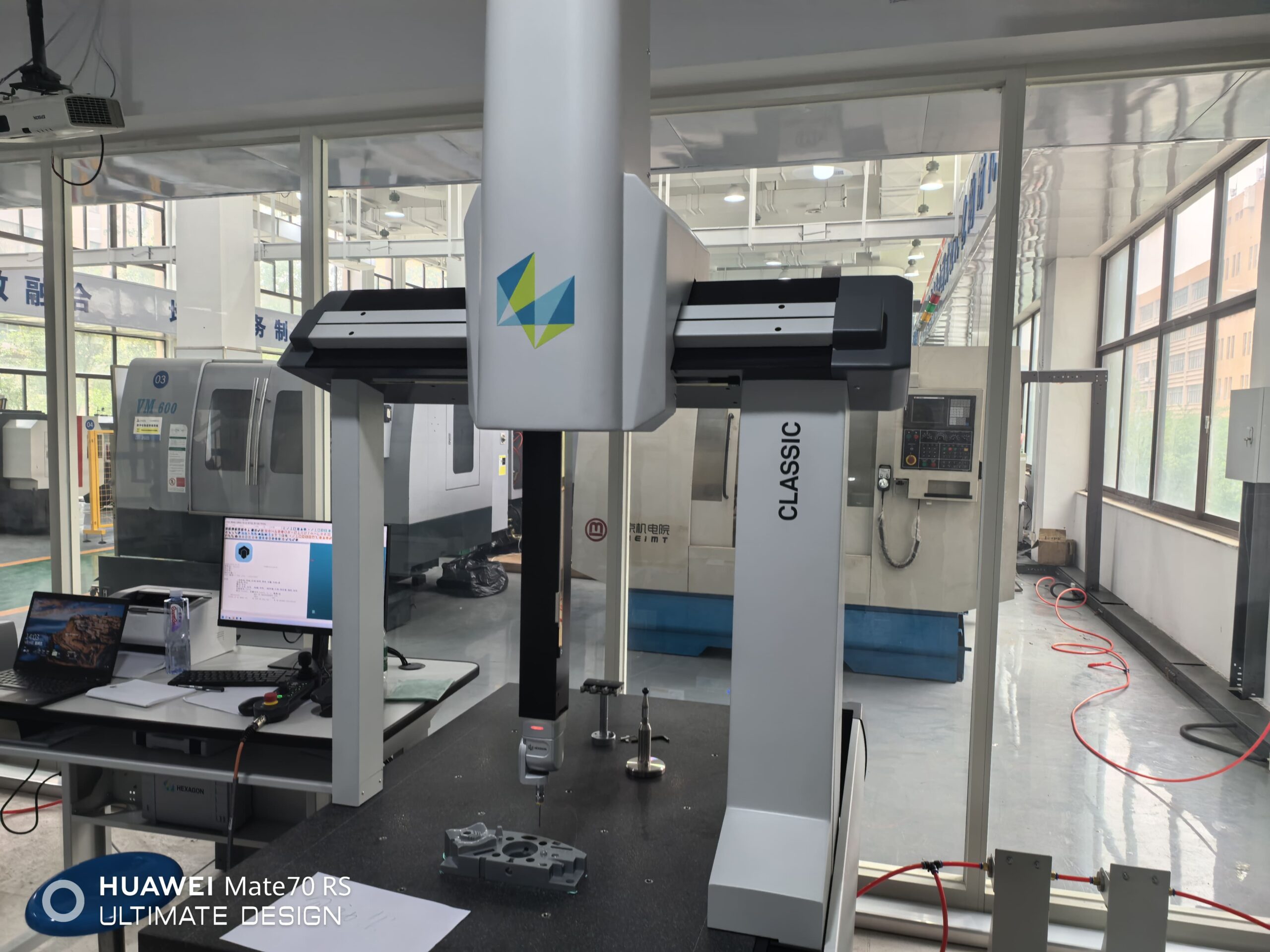

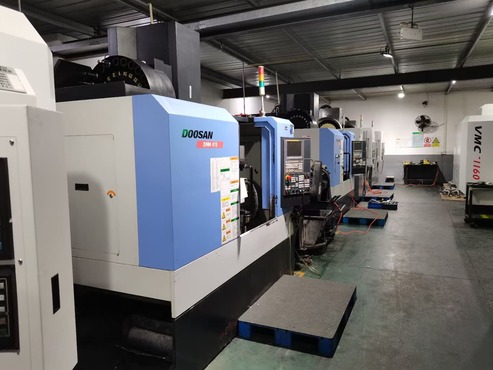

company-images-1
company-images-2
company-images-3

One Stop Solution For Precision Casting

Title Border
Tab Top Image

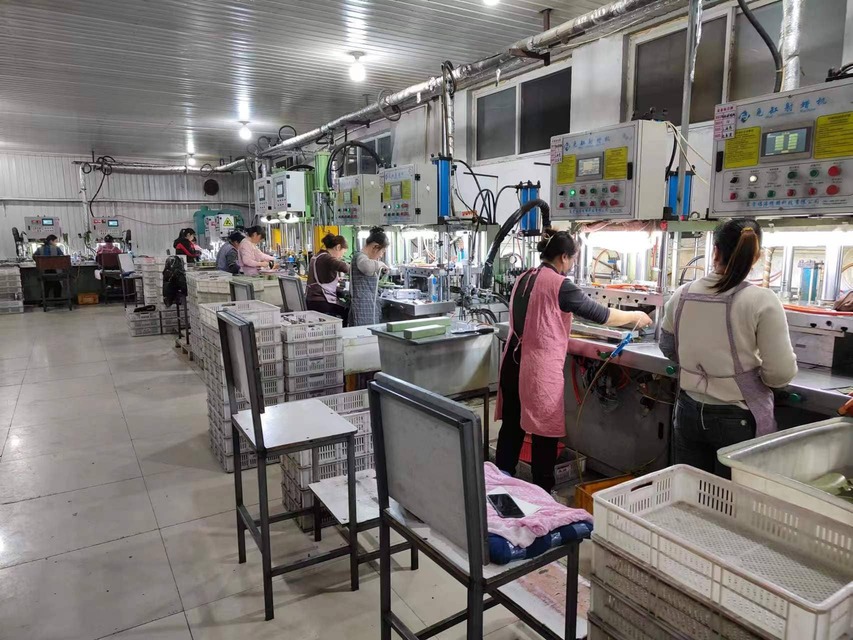

The process begins with production of a heat disposable pattern. This pattern is usually made by injecting wax into a metal die or mold. Pattern is injected in Horizontal Automatic Injection Machine.

Tab Top Image

The wax patterns are attached by the gate to a central wax runner system. The runner system is called a sprue. Patterns, runners, and pouring cup compromise the cluster or tree. Radius is provided to all joints between pattern and runner. Same checked thoroughly before coating to avoid rejection due to sand inclusions.

Tab Top Image

The shell building technique involves dipping the assembly into a ceramic slurry and then into a bed of extremely fine sand. After drying,, the process is repeated. Up to 4 to 6 layers may be applied in this manner.

Tab Top Image

The completed shell is placed in a steam autoclave where the pattern melts and runs out through the gates and pouring cup.

Tab Middle Image

The ceramic shell molds must be fired to burn out the last traces of pattern material and to preheat the mold in preparation for casting, usually in the range of 800 to 1100 degrees centigrade.

Tab Middle Image

The preheated shell is filled with molten metal by gravity pouring. As the metal cools, the parts, gates, sprue, and pouring cup become one solid casting.

Tab Middle Image

After the metal solidifies and cools, the ceramic shell is then removed by vibratory methods or water blasting.

Tab Middle Image

Casting to be shot blasted to remove all small ceramic particles.

Tab Bottom Image

Individual casting is removed from the cluster by means of a cut off wheel or welding cutting.

Tab Bottom Image

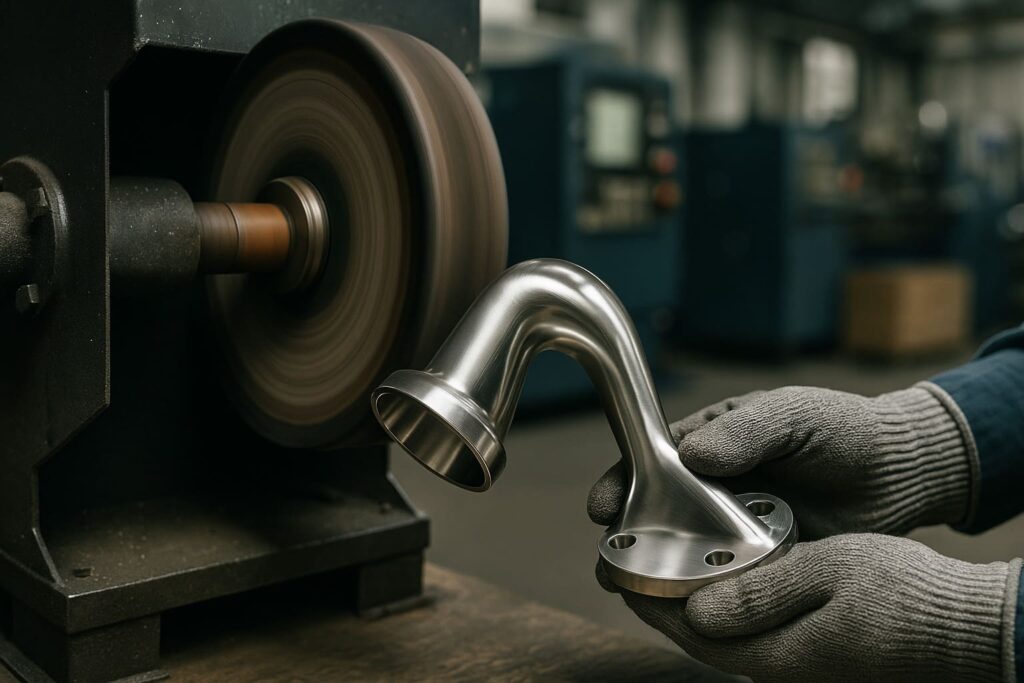

Remaining gate protrusions are removed by belt grinding.

Tab Bottom Image

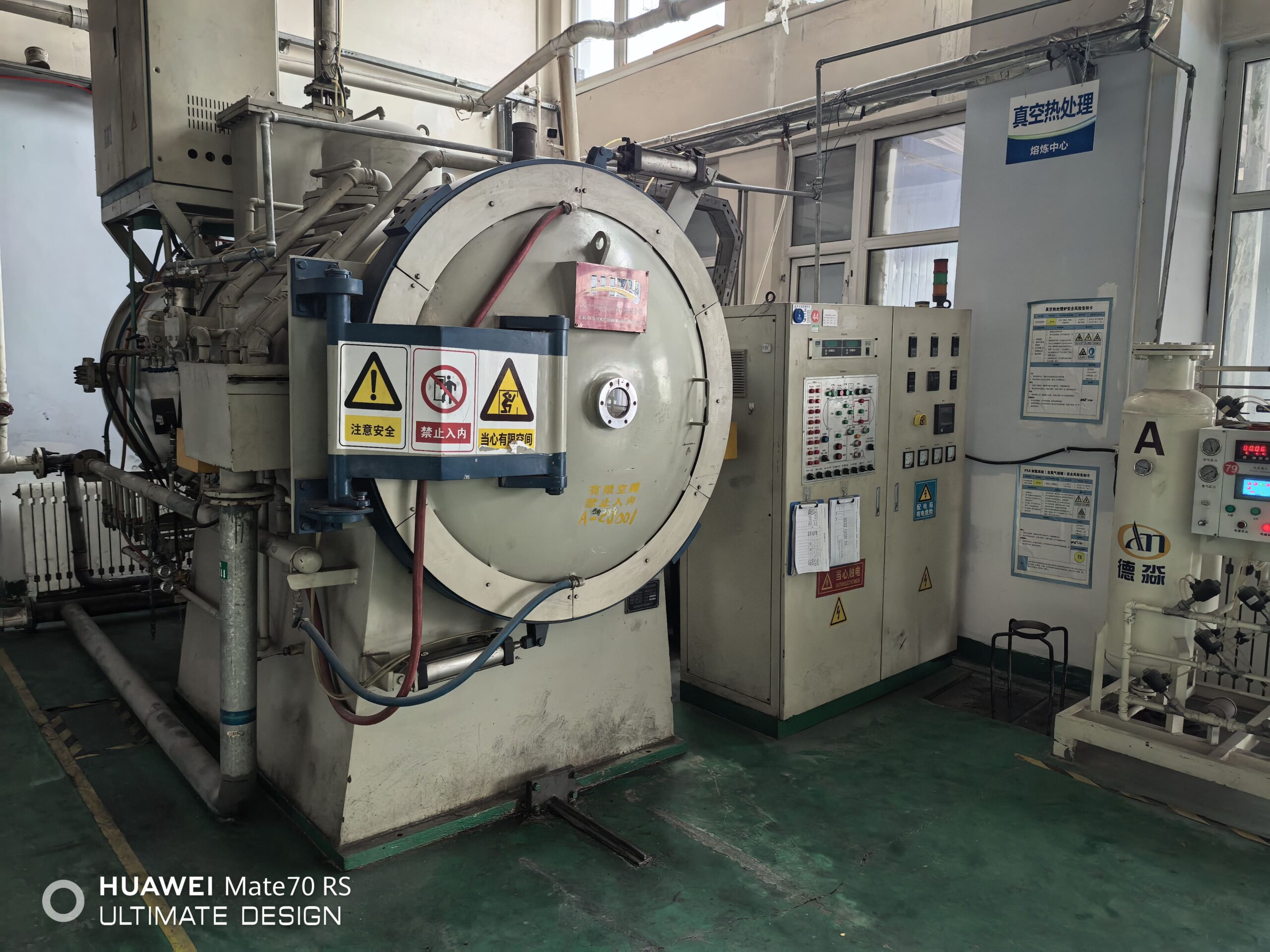

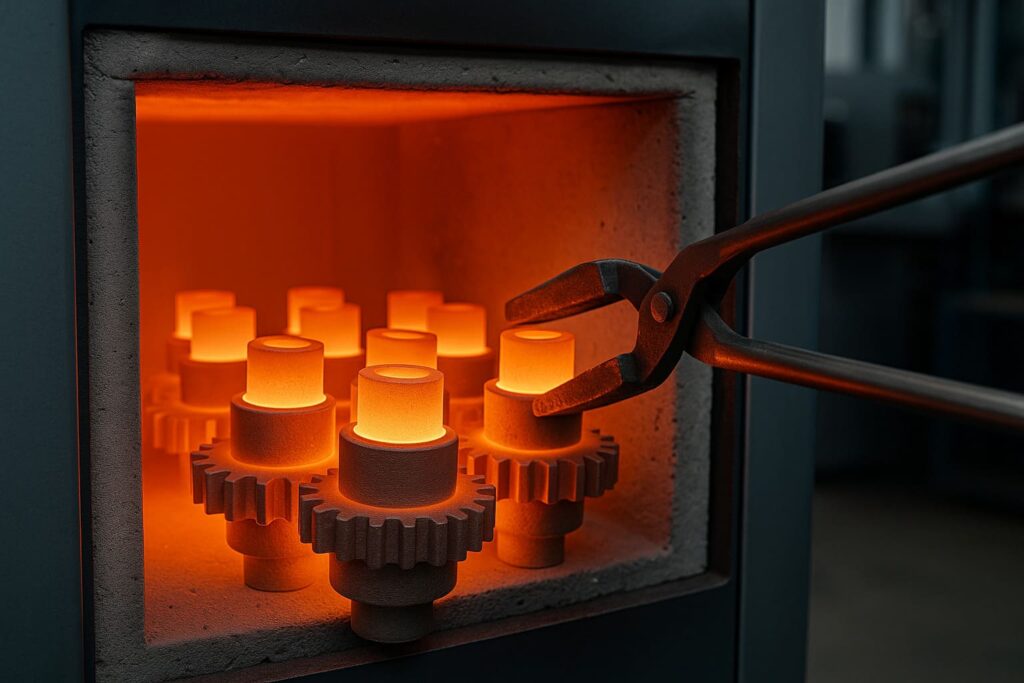

Casting is heat treated as per specifications.

Tab Bottom Image

Finally casting is sand blasted or glass bead blasted as per customer requirement, packed as per customer specification and dispatched.

MATERIAL WE ARE USING

Title Border

Our main OEM Precision casting products are castings in stainless steel, carbon steel, alloy steel products serve for many trade as food, chemical, medicine, marine, automatic, architecture etc. 90% for exporting to America, Europe and some Asia countries.

10 REASONS YOU SHOULD CHOOSE US

Title Border
10 reasons choose us 1
Capacity

Production capacity of 1,000 tons annually

10 reasons choose us 2
Fast Reply

We will provide solutions within 24 hours

10 reasons choose us 3
Printer

CAD, ODM and 3D printer available

10 reasons choose us 4
Free Tooling

Free tooling for order over 1,000 pcs

10 reasons choose us 5
Inspection

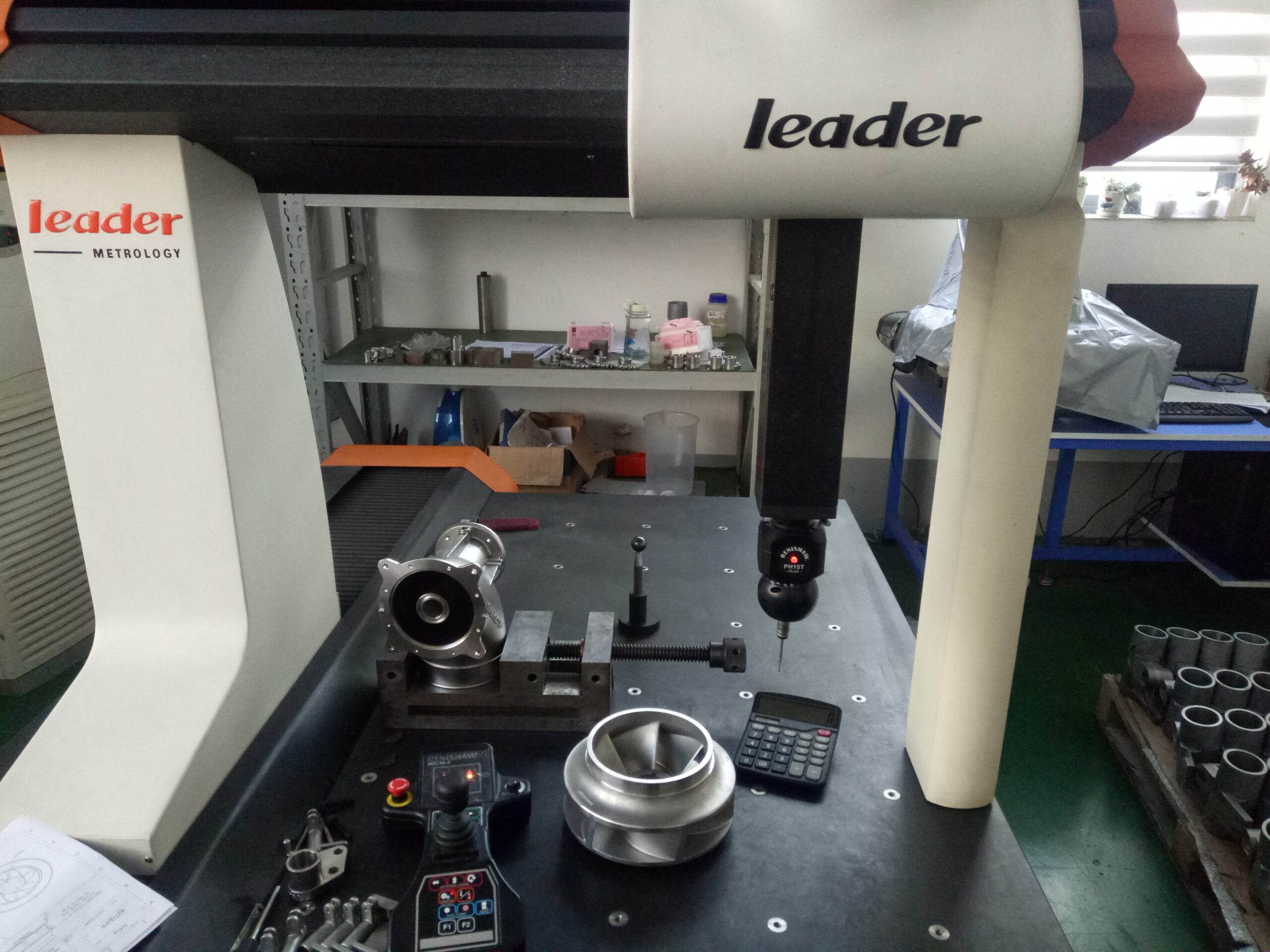

100% strict inspection before shipment

10 reasons choose us 6
Size

0.25 inches to 6 inches available

10 reasons choose us 7
Low Thickness

Wall thickness as low as 0.020 inches

10 reasons choose us 8
Less Time

Prototypes to production runs in as little as 4-6 weeks

10 reasons choose us 9
Large Production

Prototype quantities to large production runs

10 reasons choose us 10
Solid Mold

Shell mold and solid mold capabilities

REQUEST FOR QUOTE

Title Border

We will provide solutions based on your CAD or 3D drawing within 24 hours !
